Tutorials and Example Datasets

MotilA provides Jupyter notebooks and Python scripts that demonstrate the complete analysis workflow. Also, an example dataset is publicly available on Zenodo. These resources enable users to validate their installation, understand the processing steps and reproduce the results shown in the associated manuscript.

Example dataset

A curated example dataset is available on Zenodo: Musacchio et al. (2025), doi: 10.5281/zenodo.15061566; the dataset is based on Gockel & Nieves-Rivera et al., currently under revision.

The dataset contains:

  • a representative 5D time-lapse image stack,

  • a corresponding metadata.xls file with projection center settings, and

  • a ready-to-use project folder structure compatible with MotilA.

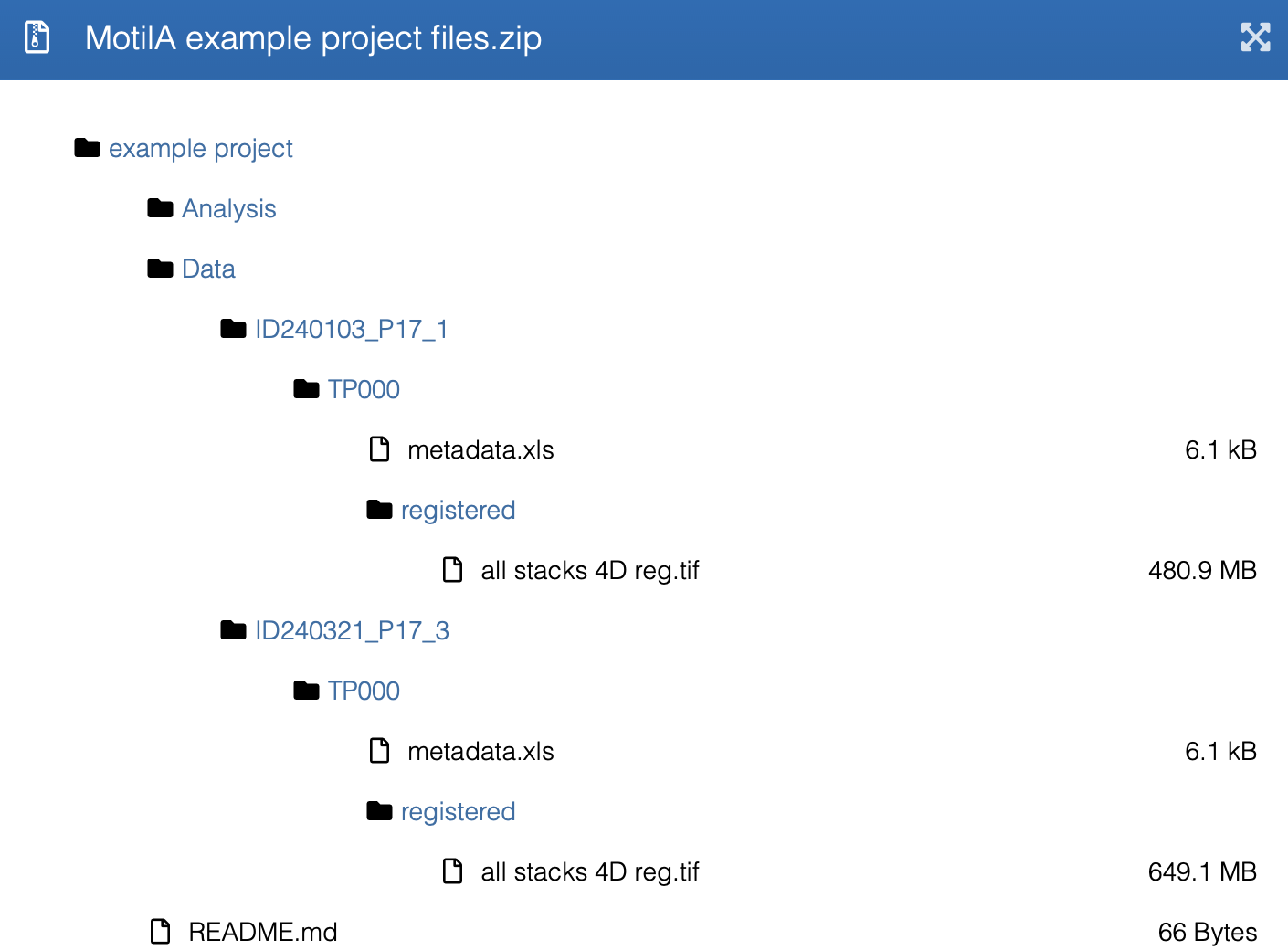

Contents of the Zenodo example dataset and expected project folder structure

Contents of the Zenodo example dataset, including the required project-folder structure for batch processing. The dataset mirrors the directory layout expected by MotilA, with ID folders, project_tag subfolders, registered TIFF stacks, and an accompanying metadata.xls file.

After downloading, place the dataset into the example project directory of your MotilA working directory (i.e., the folder, where you run the scripts from).

An example of the expected folder structure can also be found in the repository.

Running MotilA directly on this dataset allows users to verify that the pipeline is functioning correctly and produces meaningful motility metrics.

We also provide a smaller “cutout” version of the example dataset for quick testing and demonstration purposes: Musacchio (2025), doi: 10.5281/zenodo.17803977.

If you use one of the provided datasets for any purpose beyond the example tutorials, please cite both the dataset record (Musacchio et al., 2025, doi: 10.5281/zenodo.15061566 / Musacchio, 2025, doi: 10.5281/zenodo.17803977) and Gockel & Nieves-Rivera et al., currently under revision (we will update the citation once available).

Tutorial notebooks

MotilA includes Jupyter notebooks that illustrate the core processing steps on the example data:

  • single_file_run.ipynb Demonstrates the complete workflow for processing a single image stack.

  • batch_run.ipynb Shows how to process multiple datasets stored in a structured project folder.

These notebooks guide users through image loading, optional preprocessing, motility computation and inspection of intermediate and final results. They serve as the most accessible introduction to the pipeline.

Example Python scripts

Equivalent Python scripts are provided for users who prefer script-based workflows or who want to integrate MotilA into automated analysis pipelines:

These scripts mirror the behavior of the tutorial notebooks and can be adapted for larger projects or command-line environments.

Reproducing manuscript figures

The figures shown in the associated manuscript were generated using a dedicated script that applies MotilA to a specific subset of the example dataset:

The subset used for figure generation is located at:

  • example project/Data/ID240103_P17_1_cutout/TP000

The script contains all parameter settings used during analysis and can be used to reproduce the manuscript figures exactly.

Additional example datasets

The repository may include additional reduced datasets, project templates or folder structures intended to help users set up their own analyses. These resources are located in the example project directory and follow the same format expected by the batch processing routines of MotilA. They can be used as templates for structuring new experimental datasets.

Example usage

The following examples illustrate how to use MotilA in practice, starting from a registered time-lapse stack and proceeding through single-file processing, batch processing and batch-level result collection.

MotilA expects input data as TIFF image stacks in either TZCYX or TZYX format, with T denoting time, Z depth, C channels and X/Y the spatial dimensions. See the data requirements for details on axis order, multi-channel handling and the optional axis correction function tiff_axes_check_and_correct.

Single-file processing

Import MotilA and initialize logging:

import motila as mt
from pathlib import Path

# verify installation
mt.hello_world()

# initialize logger
log = mt.logger_object()

Parameter selection

Before calling motila.process_stack(), you should choose parameter values that match your imaging protocol and data quality. A complete description of all arguments is given in the parameter documentation. Below is a practical guide for the most important groups of parameters.

Projection parameters

The parameters projection_center and projection_layers control the subvolume that is projected:

  • For sparsely distributed microglia, a symmetric window of approximately 7 to 13 z-layers centered on the cell of interest is usually sufficient.

  • For densely packed microglia, it is often advisable to process several subvolumes with different projection centers in order to reduce overlap of processes in the projection.

Ensure that the chosen subvolume fits inside the stack dimensions. MotilA performs a sanity check and will adjust the subvolume if it exceeds the image bounds, but this may reduce the effective number of projected slices.

Registration parameters

If there is visible motion across time, registration should be enabled:

  • regStack3d=True if there is intra-stack motion within the 3D volume at each time point (for example breathing or slow drift along z).

  • regStack2d=True if residual lateral drift remains after 3D registration or if only projections are available.

The parameter template_mode controls how the 3D registration template is computed. A typical choice is "mean" (default), while "median" may be more robust for occasional outlier frames. The parameter max_xy_shift_correction limits the allowed x/y shift and can be used to avoid overcorrection if rare frames contain large artefacts.

Histogram equalization and matching

Two complementary mechanisms adjust contrast and compensate for bleaching:

  • hist_equalization=True applies CLAHE within each stack. This is recommended for low-contrast images or uneven illumination. Start with a clip limit around 0.05 and adjust only if necessary.

  • hist_match=True normalizes the intensity distribution across time. Select a representative time point as histogram_ref_stack (for example a mid-sequence frame without strong artefacts).

Histogram equalization improves local contrast but can amplify noise if the clip limit is chosen too high. Histogram matching makes the time series more comparable but will transfer noise patterns from the reference stack if that stack is of poor quality.

Filtering parameters

Filtering reduces noise and small artefacts before segmentation:

  • median_filter_slices and median_filter_projections apply median filters either slice-wise or on the 2D projections. Use "square" with odd kernel sizes (such as 3 or 5) for general noise reduction. Use "circular" if you aim to emulate ImageJ or Fiji.

  • gaussian_sigma_proj applies a Gaussian blur on the projection. A value around 1 to 2 pixels is a reasonable starting point. Use 0 to disable Gaussian smoothing.

Median filtering is useful when salt-and-pepper noise or small speckles dominate. Gaussian smoothing is useful for reducing high-frequency noise in otherwise smooth structures.

Spectral unmixing parameters

For two-channel recordings with bleed-through from the second channel into the microglia channel, enable spectral unmixing:

  • Set spectral_unmixing=True if there is visible contamination of the microglia channel by the second channel.

  • spectral_unmixing_amplifyer can be used to slightly amplify the microglia channel before subtraction, for example values between 1 and 2.

  • spectral_unmixing_median_filter_window controls smoothing of the second channel before subtraction. Typical values are 1 (off), 3 or 5.

Spectral unmixing is most effective when the bleed-through is relatively uniform and the second channel has good signal-to-noise ratio. If the overlap is highly non-linear or dominated by noise, unmixing may not improve the result.

Example parameter values

Below is a minimal, representative parameter configuration taken from the official tutorial script single_file_run.py. These values demonstrate how MotilA is typically used on the included example dataset. They are meant as a practical starting point and can be adapted to your own data.

# dataset identification
Current_ID = "ID240103_P17_1"
group      = "blinded"

# input file
DATA_Path  = "../example project/Data/ID240103_P17_1/TP000/registered/"
IMG_File   = "all stacks 4D reg.tif"
fname      = Path(DATA_Path).joinpath(IMG_File)

# projection settings
projection_layers = 44
projection_center = 23

# output path
RESULTS_foldername = f"../motility_analysis/projection_center_{projection_center}/"
RESULTS_Path = Path(DATA_Path).joinpath(RESULTS_foldername)
mt.check_folder_exist_create(RESULTS_Path)

# thresholding
threshold_method = "otsu"
blob_pixel_threshold = 100
compare_all_threshold_methods = True

# image enhancement
hist_equalization = True
hist_equalization_clip_limit = 0.05
hist_equalization_kernel_size = None
hist_match = True
histogram_ref_stack = 0

# filtering
median_filter_slices = "circular"
median_filter_window_slices = 1.55
median_filter_projections = "circular"
median_filter_window_projections = 1.55
gaussian_sigma_proj = 1.0

# channels
two_channel = True
MG_channel = 0
N_channel  = 1

# registration
regStack3d = True
regStack2d = False
template_mode = "max"
max_xy_shift_correction = 100

# spectral unmixing
spectral_unmixing = True
spectral_unmixing_amplifyer = 1
spectral_unmixing_median_filter_window = 3

# book-keeping
clear_previous_results = True
log = mt.logger_object()

Calling the processing function

After defining the necessary parameters, run the pipeline:

mt.process_stack(fname=fname,
                 MG_channel=MG_channel,
                 N_channel=N_channel,
                 two_channel=two_channel,
                 projection_layers=projection_layers,
                 projection_center=projection_center,
                 histogram_ref_stack=histogram_ref_stack,
                 log=log,
                 blob_pixel_threshold=blob_pixel_threshold,
                 regStack2d=regStack2d,
                 regStack3d=regStack3d,
                 template_mode=template_mode,
                 spectral_unmixing=spectral_unmixing,
                 hist_equalization=hist_equalization,
                 hist_equalization_clip_limit=hist_equalization_clip_limit,
                 hist_equalization_kernel_size=hist_equalization_kernel_size,
                 hist_match=hist_match,
                 RESULTS_Path=RESULTS_Path,
                 ID=Current_ID,
                 group=group,
                 threshold_method=threshold_method,
                 compare_all_threshold_methods=compare_all_threshold_methods,
                 gaussian_sigma_proj=gaussian_sigma_proj,
                 spectral_unmixing_amplifyer=spectral_unmixing_amplifyer,
                 median_filter_slices=median_filter_slices,
                 median_filter_window_slices=median_filter_window_slices,
                 median_filter_projections=median_filter_projections,
                 median_filter_window_projections=median_filter_window_projections,
                 clear_previous_results=clear_previous_results,
                 spectral_unmixing_median_filter_window=spectral_unmixing_median_filter_window,
                 debug_output=debug_output,
                 stats_plots=stats_plots)

For a compact overview of all parameters and their allowed values, see the parameter reference.

Batch processing

Batch processing uses the same parameters but operates on multiple datasets organized in a project folder. In addition, the following parameters control which datasets are processed and where the results are written:

  • PROJECT_Path specifies the root directory containing all ID folders.

  • ID_list selects which IDs inside PROJECT_Path are processed.

  • project_tag identifies project-specific subfolders within each ID.

  • reg_tif_file_folder and reg_tif_file_tag select the TIFF files that should be processed inside each project.

  • RESULTS_foldername defines where the motility results will be stored within each project folder.

  • metadata_file (for example "metadata.xls") optionally overrides parameters such as channel indices or projection centers on a per-dataset basis.

A detailed description of the expected folder structure and metadata handling is given in the parameter documentation.

Example batch configuration

The following parameter set is taken from the tutorial script batch_run.py and demonstrates how to batch-process the included example datasets from the Zenodo record:

PROJECT_Path = "../example project/Data/"
ID_list = ["ID240103_P17_1", "ID240321_P17_3"]

project_tag = "TP000"
reg_tif_file_folder = "registered"
reg_tif_file_tag = "reg"
RESULTS_foldername = "../motility_analysis/"
metadata_file = "metadata.xls"

# projection settings
projection_layers = 44
projection_center = 23

# thresholding
threshold_method = "otsu"
blob_pixel_threshold = 100
compare_all_threshold_methods = True

# image enhancement
hist_equalization = True
hist_equalization_clip_limit = 0.1
hist_equalization_kernel_size = (128, 128)
hist_match = True
histogram_ref_stack = 0

# filtering
median_filter_slices = "circular"
median_filter_window_slices = 1.55
median_filter_projections = "circular"
median_filter_window_projections = 1.55
gaussian_sigma_proj = 1.0

# channels
two_channel = True
MG_channel = 0
N_channel = 1

# registration
regStack3d = True
regStack2d = False
template_mode = "max"
max_xy_shift_correction = 100

# spectral unmixing
spectral_unmixing = True
spectral_unmixing_amplifyer = 1
spectral_unmixing_median_filter_window = 3

# housekeeping
clear_previous_results = True
log = mt.logger_object()

These values provide a realistic starting point and can be adapted to new projects by changing the paths, ID list, and, if necessary, the preprocessing and segmentation settings.

The batch-processing call is:

mt.batch_process_stacks(PROJECT_Path=PROJECT_Path,
                        ID_list=ID_list,
                        project_tag=project_tag,
                        reg_tif_file_folder=reg_tif_file_folder,
                        reg_tif_file_tag=reg_tif_file_tag,
                        metadata_file=metadata_file,
                        RESULTS_foldername=RESULTS_foldername,
                        MG_channel=MG_channel,
                        N_channel=N_channel,
                        two_channel=two_channel,
                        projection_center=projection_center,
                        projection_layers=projection_layers,
                        histogram_ref_stack=histogram_ref_stack,
                        log=log,
                        blob_pixel_threshold=blob_pixel_threshold,
                        regStack2d=regStack2d,
                        regStack3d=regStack3d,
                        template_mode=template_mode,
                        spectral_unmixing=spectral_unmixing,
                        hist_equalization=hist_equalization,
                        hist_equalization_clip_limit=hist_equalization_clip_limit,
                        hist_equalization_kernel_size=hist_equalization_kernel_size,
                        hist_match=hist_match,
                        max_xy_shift_correction=max_xy_shift_correction,
                        threshold_method=threshold_method,
                        compare_all_threshold_methods=compare_all_threshold_methods,
                        gaussian_sigma_proj=gaussian_sigma_proj,
                        spectral_unmixing_amplifyer=spectral_unmixing_amplifyer,
                        median_filter_slices=median_filter_slices,
                        median_filter_window_slices=median_filter_window_slices,
                        median_filter_projections=median_filter_projections,
                        median_filter_window_projections=median_filter_window_projections,
                        clear_previous_results=clear_previous_results,
                        spectral_unmixing_median_filter_window=spectral_unmixing_median_filter_window,
                        debug_output=debug_output,
                        stats_plots=stats_plots)

Batch collection

After batch processing, the results from multiple datasets can be aggregated for cohort-level analysis. The key parameters are:

  • PROJECT_Path pointing to the same project root as in batch processing.

  • ID_list listing the IDs that should be included in the cohort.

  • project_tag selecting the experiment subfolders.

  • motility_folder specifying the folder inside each project where MotilA wrote the per-dataset results.

  • RESULTS_Path defining the output directory for the aggregated cohort tables.

Example batch collection configuration

The following configuration mirrors the settings used in the tutorial script batch_run.py for collecting results from the example project:

PROJECT_Path = "../example project/Data/"
RESULTS_Path = "../example project/Analysis/MG_motility/"

ID_list = ["ID240103_P17_1", "ID240321_P17_3"]
project_tag = "TP000"
motility_folder = "motility_analysis"

log = mt.logger_object()

Aggregate results across multiple datasets with:

mt.batch_collect(PROJECT_Path=PROJECT_Path,
                 ID_list=ID_list,
                 project_tag=project_tag,
                 motility_folder=motility_folder,
                 RESULTS_Path=RESULTS_Path,
                 log=log)

Assessing your results

Single-file results include TIFF and PDF files for each processing step as well as an Excel file motility.xlsx containing:

  • gained pixels (G),

  • lost pixels (L),

  • stable pixels (S),

  • turnover rate (TOR).

Additional Excel files summarize brightness metrics and cell pixel areas. The brightness measures allow you to assess bleaching and signal stability over time. The cell pixel area is expected to remain relatively stable if the microglial cells do not leave the field of view or disappear.

Batch processing generates cohort-level summary files:

  • all_motility.xlsx

  • all_brightness.xlsx

  • all_cell_pixel_area.xlsx

  • average_motility.xlsx

These files can be used to compare experimental groups, quantify effects of manipulations and create summary plots for publication.

Summary

MotilA provides a complete set of resources for learning and validating the pipeline:

  • a publicly available Zenodo dataset,

  • Jupyter notebooks for interactive exploration,

  • Python scripts for automated workflows, and

  • a dedicated dataset and script for reproducing manuscript figures.

Together, these materials offer a reproducible and practical starting point for using MotilA on real multiphoton imaging data.
